Availability: | |
---|---|
Quantity: | |
Transparent MBS Impact Modifier MBS-200
Description
MBS-200 is a type of transparent MBS impact modifier. It has dual benefits with balance of mechanical properties and optical properties. It is environmentally friendly and mainly used to produce clear PVC sheet and film with balance of transparency and impact strength.
Key property
Promote fusion
Balance of transparency and impact strength
Good heat stability
Improve melt flow ability
Product index
Specification | MBS-200 |
Appearance | White, free flowing powder |
Bulk Density | >0.36 g/cc |
Particle Size (16 mesh) | ≤1.5 |
Volatile content | ≤1.00 |
Specific gravity | ≤1.10 |
Basic formulation for following tests
Ingredients | 0# Control | 1# Competitor | 2# MBS-200 |
PVC(K-57) | 100.00 | 100.00 | 100.00 |
Tin stabilizer | 1.20 | 1.20 | 1.20 |
Transparent processing aid P-20 | 1.00 | 1.00 | 1.00 |
Int. lubricant LU-60 | 1.00 | 1.00 | 1.00 |
Ext. lubricant LU--74 | 0.50 | 0.50 | 0.50 |
MBS Competitor | -- | 5.00 | -- |
MBS-200 | -- | -- | 5.00 |
Fusion properties comparison

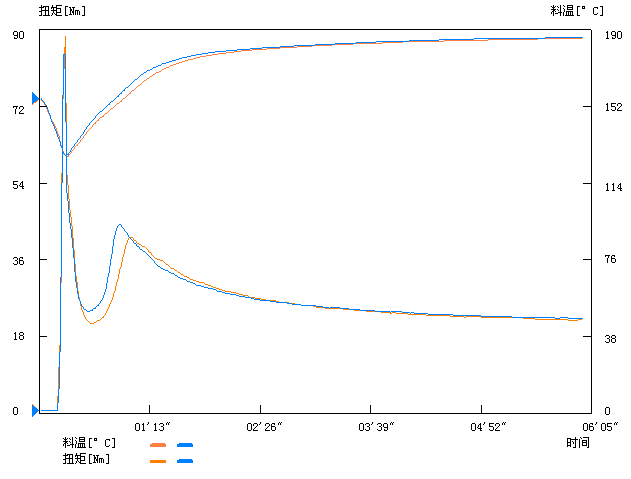

Test conditions | 160℃ 60rpm | ||||
| |||||
Fusion data Type | Fusion time (S) | Highest torque (Nm) | Lowest torque (Nm) | Equilibrium torque(Nm) | |
1# Competitor | 41 | 43.3 | 20.3 | 22.3 | |
2#MBS-200 | 37 | 46.0 | 23.5 | 22.4 |

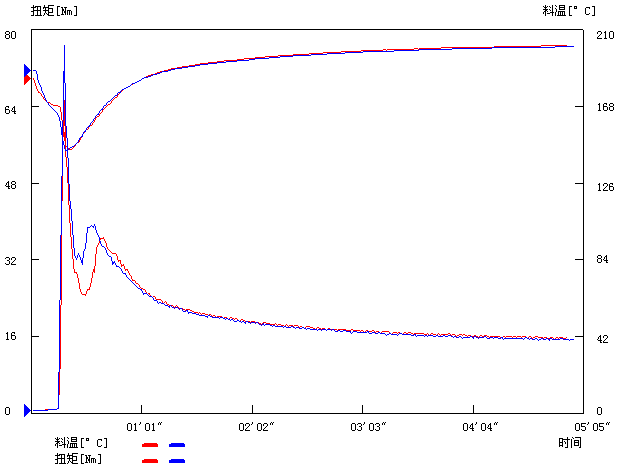

Test conditions | 190 30rpm | ||||
| |||||
Fusion data Type | Fusion time (S) | Highest torque (Nm) | Lowest torque (Nm) | Equilibrium torque(Nm) | |
1# Competitor | 41 | 30.9 | 23.7 | 16.6 | |
2# MBS-200 | 37 | 33.0 | 27.3 | 16.4 |

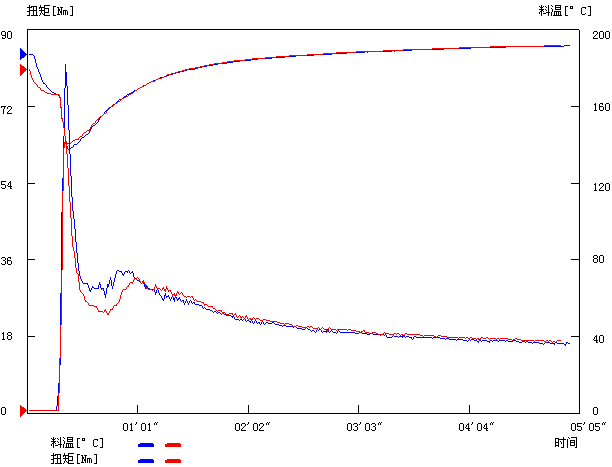

Test conditions | 190℃ 60rpm | ||||
| |||||
Fusion data Type | Fusion time (S) | Highest torque (Nm) | Lowest torque (Nm) | Equilibrium torque(Nm) | |
1# Competitor | 21 | 36.5 | 24.8 | 15.6 | |
2# MBS-200 | 16 | 39.2 | 31.0 | 15.6 |
Optical properties comparison
Type | Haze |
1# Competitor | 4.02±0.04 |
2# MBS-200 | 3.85±0.03 |
Dynamic thermal stability
Test condition: double-roller mill temperature190℃ Thickness: 0.5mm
YI at different time Test standard: ASTM E313-00
Type | 3' | 5' | 7' | 9' | 11' | 13' | 15' |
1# Competitor | 0.95 | 3.20 | 4.57 | 5.68 | 6.67 | 7.85 | 8.90 |
2# MBS-200 | 0.99 | 3.58 | 4.24 | 5.98 | 7.08 | 8.01 | 9.17 |
Mechanical property
Pat impact: 5℃stable 20min, 25.020HZ pat 15s
Type | Thickness(mm) | Number of all samples | Number of damaged samples |
0# Control | 0.5±0.02 | 10 | 10 |
1# Competitor | 0.5±0.02 | 10 | 2 |
2# MBS-200 | 0.5±0.02 | 10 | 2 |
-5℃stable 20min, 25.020HZ pat 15s
Type | Thickness(mm) | Number of all samples | Number of damaged samples |
0# Control | 0.5±0.02 | 10 | 10 |
1# Competitor | 0.5±0.02 | 10 | 4 |
2# MBS-200 | 0.5±0.02 | 10 | 3 |
Tensile strength comparison
Test standard: GBT 1040-2006 Test condition: 23℃ 10mm/min
Type | Tensile strength (MPa) | Elongation at break (%) |
0# Control | 46.71±0.24 | 115.64±4.12 |
1# Competitor | 45.20±0.43 | 157.04±3.54 |
2# MBS-200 | 45.24±0.46 | 164.89±4.51 |
Metal release property comparison
Test condition: Double-roller mill temperature 196℃
Type | Sticking time(S) |
0# Control | 340±10 |
1# Competitor | 504±12 |
2# MBS-200 | 513±12 |
Transparent MBS Impact Modifier MBS-200
Description
MBS-200 is a type of transparent MBS impact modifier. It has dual benefits with balance of mechanical properties and optical properties. It is environmentally friendly and mainly used to produce clear PVC sheet and film with balance of transparency and impact strength.
Key property
Promote fusion
Balance of transparency and impact strength
Good heat stability
Improve melt flow ability
Product index
Specification | MBS-200 |
Appearance | White, free flowing powder |
Bulk Density | >0.36 g/cc |
Particle Size (16 mesh) | ≤1.5 |
Volatile content | ≤1.00 |
Specific gravity | ≤1.10 |
Basic formulation for following tests
Ingredients | 0# Control | 1# Competitor | 2# MBS-200 |
PVC(K-57) | 100.00 | 100.00 | 100.00 |
Tin stabilizer | 1.20 | 1.20 | 1.20 |
Transparent processing aid P-20 | 1.00 | 1.00 | 1.00 |
Int. lubricant LU-60 | 1.00 | 1.00 | 1.00 |
Ext. lubricant LU--74 | 0.50 | 0.50 | 0.50 |
MBS Competitor | -- | 5.00 | -- |
MBS-200 | -- | -- | 5.00 |
Fusion properties comparison
Test conditions | 160℃ 60rpm | ||||
| |||||
Fusion data Type | Fusion time (S) | Highest torque (Nm) | Lowest torque (Nm) | Equilibrium torque(Nm) | |
1# Competitor | 41 | 43.3 | 20.3 | 22.3 | |
2#MBS-200 | 37 | 46.0 | 23.5 | 22.4 |
Test conditions | 190 30rpm | ||||
| |||||
Fusion data Type | Fusion time (S) | Highest torque (Nm) | Lowest torque (Nm) | Equilibrium torque(Nm) | |
1# Competitor | 41 | 30.9 | 23.7 | 16.6 | |
2# MBS-200 | 37 | 33.0 | 27.3 | 16.4 |
Test conditions | 190℃ 60rpm | ||||
| |||||
Fusion data Type | Fusion time (S) | Highest torque (Nm) | Lowest torque (Nm) | Equilibrium torque(Nm) | |
1# Competitor | 21 | 36.5 | 24.8 | 15.6 | |
2# MBS-200 | 16 | 39.2 | 31.0 | 15.6 |
Optical properties comparison
Type | Haze |
1# Competitor | 4.02±0.04 |
2# MBS-200 | 3.85±0.03 |
Dynamic thermal stability
Test condition: double-roller mill temperature190℃ Thickness: 0.5mm
YI at different time Test standard: ASTM E313-00
Type | 3' | 5' | 7' | 9' | 11' | 13' | 15' |
1# Competitor | 0.95 | 3.20 | 4.57 | 5.68 | 6.67 | 7.85 | 8.90 |
2# MBS-200 | 0.99 | 3.58 | 4.24 | 5.98 | 7.08 | 8.01 | 9.17 |
Mechanical property
Pat impact: 5℃stable 20min, 25.020HZ pat 15s
Type | Thickness(mm) | Number of all samples | Number of damaged samples |
0# Control | 0.5±0.02 | 10 | 10 |
1# Competitor | 0.5±0.02 | 10 | 2 |
2# MBS-200 | 0.5±0.02 | 10 | 2 |
-5℃stable 20min, 25.020HZ pat 15s
Type | Thickness(mm) | Number of all samples | Number of damaged samples |
0# Control | 0.5±0.02 | 10 | 10 |
1# Competitor | 0.5±0.02 | 10 | 4 |
2# MBS-200 | 0.5±0.02 | 10 | 3 |
Tensile strength comparison
Test standard: GBT 1040-2006 Test condition: 23℃ 10mm/min
Type | Tensile strength (MPa) | Elongation at break (%) |
0# Control | 46.71±0.24 | 115.64±4.12 |
1# Competitor | 45.20±0.43 | 157.04±3.54 |
2# MBS-200 | 45.24±0.46 | 164.89±4.51 |
Metal release property comparison
Test condition: Double-roller mill temperature 196℃
Type | Sticking time(S) |
0# Control | 340±10 |
1# Competitor | 504±12 |
2# MBS-200 | 513±12 |
