ACRYLIC PROCESSING AID P-20
DESCRIPTION
P-20 is mainly used to promote fusion of PVC compound without affecting the optical property of PVC clear products. It can be used for all kinds of PVC products especially for PVC clear products, such as PVC clear film, sheet, bottle, shoes and so on.
KEY PROPERTY
• Faster fusion
• Excellent transparency for PVC finished products
• Good surface gloss

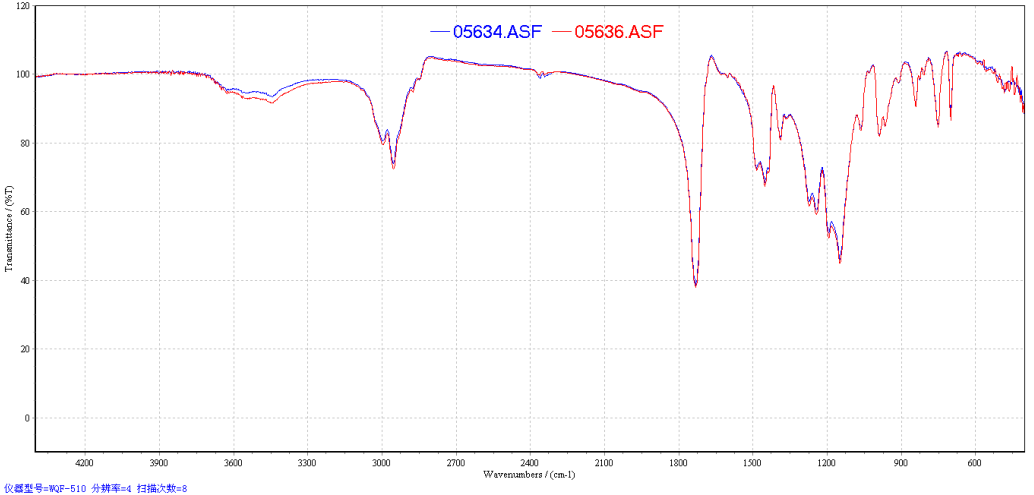

FTIR ANAYSIS
Remark: ——05634 P-20 ——05636 Competitor “K”
PRODUCT INDEX
Specification | Unit | Test standard | P-20 |
Appearance | -- | -- | White powder |
Bulk density | g/cm3 | GB/T 1636-2008 | ≥ 0.47 |
Sieve residue (30 mesh) | % | GB/T 2916 | ≤ 2.0 |
Volatile content | % | ASTM D5668 | ≤ 1.30 |
Intrinsic viscosity (η) | -- | GB/T 16321.1-2008 | 1.40±0.20 |

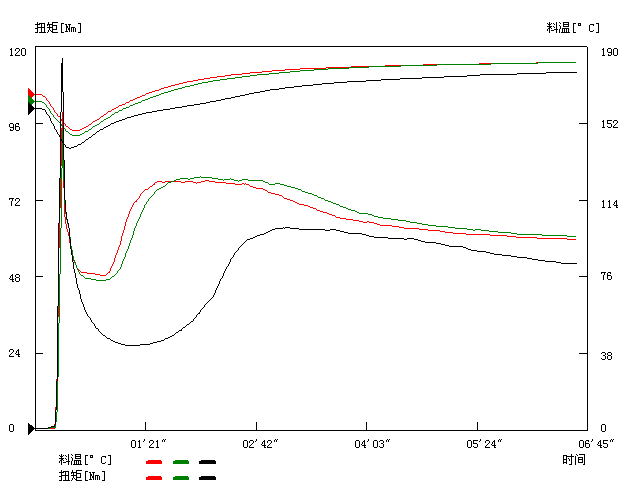

FUSION PROPERTY COMPARISON
Test equipment type: RM-200C torque rheometer from Harbin Hapro Electrical technology Co., LtdVolume: 60ml
Test conditions | 160℃ 60rpm | ||||
| |||||
Type | Lowest torque (Nm) | Highest torque (Nm) | Equilibrium torque (Nm) | Fusion time (S) | |
1# Control | 26.8 | 62.5 | 52.1 | 156 | |
2# P-20 | 46.5 | 77.8 | 59.3 | 91 | |
3# Competitor “K” | 48.4 | 77.8 | 59.6 | 94 | |
OPTICAL PROPERTY COMPARISON
Transparency comparison (Test standard: ASTM-D1003-00)
Specification Type | Transmittance (%) | Haze (%) |
1# Control | 90.2 | 3.24 |
2# P-20 | 89.1 | 5.95 |
3# Competitor “K” | 88.8 | 6.32 |
Glossiness comparison Test condition: 45°
Type | Glossiness of PVC extruded sheet |
1# Control | 11.3 |
2# P-20 | 34.5 |
3# Competitor “K” | 33.9 |
Basic formulation for the property comparison: PVC(K-57) 100.0phr, Tin stabilizer 0.8phr, Internal lubricant 1.0phr, External lubricant 0.5phr, MBS impact modifier 5.0phr, Processing aid 1.0phr
STORAGE
The product should be stored in cool and dry surroundings.
The shelf life is two years, it can be still used if qualified by inspection after shelf life.
PACKAGE
25kg/bag with PP bag or customized packaging according to customer requirements.
LOADING CAPACITY
For 20GP container, we can load 12mt with pallets or 13mt without pallets.
For 40HC container, we can load 24mt with pallets or 24mt without pallets.
