ACRYLIC PROCESSING AID P-600
DESCRIPTION
P-600 is one kind of acrylic processing aid with high molecular weight, it is also called foaming regulator in foaming board and WPC application. P-600 can provide good fusion property and appearance for PVC foamed products.
KEY PROPERTY
• Promote fusion
• Lower density of PVC foamed products
• Promote uniform cell structure
• Improve the glossiness
• Improve the melt strength
• More CaCO3 added for cost-saving
PRODUCT INDEX
Item | Unit | Test standard | Specification |
Appearance | -- | -- | White powder |
Bulk density | g/cm3 | GB/T 1636-2008 | 0.45±0.10 |
Sieve residue (30 mesh) | % | GB/T 2916 | ≤ 2.0 |
Volatile content | % | ASTM D5668 | 1.00±0.50 |
Intrinsic viscosity (η) | -- | GB/T 16321.1-2008 | 11.75±0.50 |
FUSION PROPERTY COMPARISON
Test equipment type: RM-200C torque rheometer from Harbin Hapro Electrical technology Co., Ltd Volume: 60ml
Test conditions 160℃，90rpm
Type Fusion data | Highest torque(Nm) | Equilibrium torque(Nm) | Fusion time(S) |
1# Competitor | 40.5 | 30.6 | 100 |
2# P-600 | 40.5 | 30.6 | 100 |

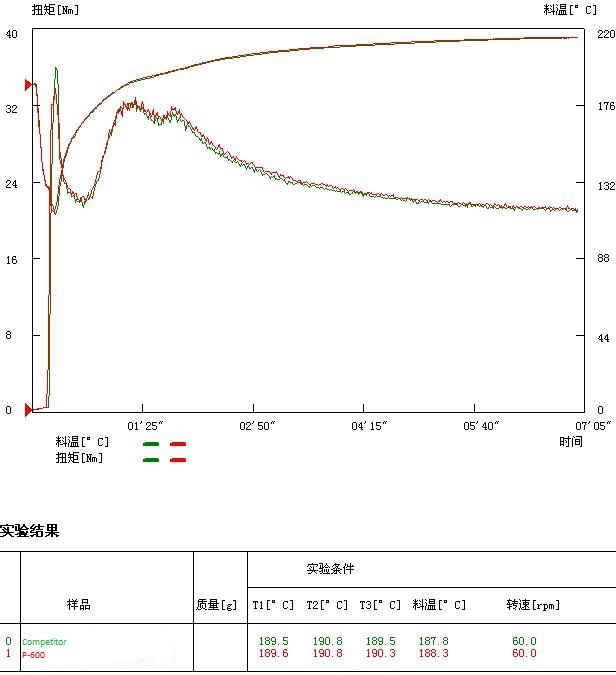

Test conditions 190℃，60rpm
Fusion data Type | Highest torque (Nm) | Equilibrium torque (Nm) | Fusion time (S) | |
1# Competitor | 32.0 | 21.0 | 59 | |
2# P-600 | 32.0 | 21.0 | 59 | |
RECOMMENDED FORMULA
• Foaming board application
Item | Cabinet board | Poster board |
PVC | 75kg | 50kg |
CaCO3 | 50kg | 35kg |
Recycle | 30kg | 20kg |
Acrylic processing aid P-600 | 8kg | 4.8kg |
Internal lubricant LU-60 | 0.5kg | 0.3kg |
AC | 0.4kg | 0.3kg |
NC | 1.2kg | 0.6kg |
Lead stabilizer LS-28 | 4.2kg | 2.8kg |
TiO2 | 2.5kg | 1.8kg |
Whitening agent | 0.03kg | 0.03kg |
PE Wax PW-200 | 0.35kg | 0.25kg |
316A | 0.4kg | 0.28kg |
• WPC products application
Item | Dosage |
PVC | 75 |
CaCO3 | 50 |
Wood | 12.5 |
Ca-Zn Stabilizer CS-60 | 4 |
Acrylic processing aid P-600 | 5.5 |
AC | 0.25 |
NC | 0.5 |
CPE-135A | 3 |
Internal lubricant LU-60 | 0.25 |
PE Wax PW-200 | 0.4 |
Acrylic processing aid P-175 | 1.2 |
STORAGE
The product should be stored in cool and dry surroundings.
The shelf life is two years, it can be still used if qualified by inspection after shelf life.
PACKAGE
25kg/bag with PP bag or customized packaging according to customer requirements.
LOADING CAPACITY
For 20GP container, we can load 12mt with pallets or 13mt without pallets.
For 40HC container, we can load 24mt with pallets or 24mt without pallets.
